How to Replace the Lägler FLIP® V-Belt

November 29, 2017/in Lägler /by webmaster

Have you noticed your Lägler FLIP® acting a bit different lately? Maybe you’re having a tough time starting it or the working speed has decreased.
Maybe it feels like it isn’t running as smoothly as usual or the noise has gotten louder. The FLIP might be losing its steam to suck dust. It’s maintenance
time.

All machines need a hug from time to time, and parts need to be replaced. It’s no different than routinely changing the oil on your truck. New oil, smooth
ride.

New V-belt, new edger.

Over time, residue accumulates in the pulleys and in the attachment. The issues mentioned above start happening and you know it’s time to take a look under
the hood and replace the V-belt. While you’re there, check whether the fan housing and blades to see if there is buildup there that needs to be dealt
with too.

The V-belt must be replaced, at the latest, when it cannot be retightened because the screws for connecting the attachment are at the end of the holes.

Special note: The V-belt should run without touching the ground of the pulley. The belt’s left and right edges should rest against the inner edges
of the pulley.

Step-by-step instructions for removing and installing the V-belt for the Lägler FLIP edger are listed below. They also are shown in the video above, using
the illustrations from the Lägler FLIP Operations Manual.

How to Remove the V-Belt on the Lägler FLIP

Assuming you’ve already turned off and unplugged the FLIP:

1. Lay the machine on its side or with the motor housing on a table. Avoid damages to the floor or table and the machine.

2. Undo the screw of the belt tightening plate (at the back of the attachment) with the universal spanner, the special T-grip driver (P1230 | 000.91.40.001) that comes with the purchase of a new FLIP.

How to Remove the Lagler FLIP V-Belt

3. Turn the belt tightening plate away from the attachment and re-tighten the screw of the belt tightening plate.

4. Use the universal spanner to remove the two screws that connect the attachment, along with the washers and the guide angles. Place these parts to the
side.

5. Remove the attachment from the machine and put down the attachment with the sanding disc facing upward.

How to Remove the Lagler FLIP V-Belt

6. Use the universal spanner to undo the fixing screws of the attachment cover and remove this from the attachment.

7. Turn the attachment over.

8. Use the universal spanner to undo the four fixing screws of the complete sanding disc.

9. Remove the attachment from the complete sanding disc.

How to Remove the Lagler FLIP V-Belt

10. Dispose of the worn-out V-belt.

11. Check whether the sanding plate pulley or the motor pulley are worn-out. Replace these parts if necessary. If one pulley appears to be worn out, then
both will be. Here are two signs of a worn out pulley:

  • The edges of the belt slip down into the groove of the pulley.
  • The pulley groove is polished from the belt running directly on it.

12. Clean the two pulleys and the attachment. Wear a respiratory protective mask if necessary.

How to Install the V-Belt on the Lägler FLIP

1. Place the new V-belt on the complete sanding plate pulley.

2. Insert the complete sanding plate with V-belt in the attachment. Ensure that the holes of the complete sanding plate are aligned with the holes in the
attachment.

How to Install the Lagler FLIP V-Belt

3. Make sure the sanding plate can be turned by hand and the V-belt is correctly placed in the attachment.

4. Turn the attachment over and tighten the four screws for attaching the complete sanding plate using the universal spanner.

5. Push the attachment over the motor pulley and insert the V-belt into the motor pulley.

6. Put on the attachment cover.

How to Install the Lagler FLIP V-Belt

7. Tighten the two screws for connecting the attachment, placing a washer and guide angle in the respective threads of the fan housing. Do not tighten the screws all the way yet.

Make sure the belt tightening plate is not located between the attachment and the fan housing. Otherwise, a significant amount of dust will escape
from this area during sanding.

8. Tighten the V-belt. (See the “How to Tighten the Lägler FLIP V-Belt” section below.)

After a few days’ use to break-in the new belt, check the belt tension. Tighten again as necessary.

How to Tighten the Lägler FLIP V-Belt

1. Lay the machine on its side or with the motor housing on a table. Avoid damages to the floor or table and the machine.

2. Use the universal spanner to loosen the two screws that connect the attachment to the fan housing.

3. Use the universal spanner to loosen the screw that attaches the belt tightening plate.

4. Hold the FLIP® by the fan housing and press the belt tightening plate forward toward the attachment at the same time with your thumb. Use
your other hand and the universal spanner to retighten the three screws.

Learn more about maintaining and getting the most out of your Lägler FLIP and
other Lägler sanding machines by subscribing to the Lägler North America monthly email newsletter,
and by following us on Instagram, Facebook and Twitter.

Related Blog Posts

How to Adjust Lägler FLIP Sanding Pressure

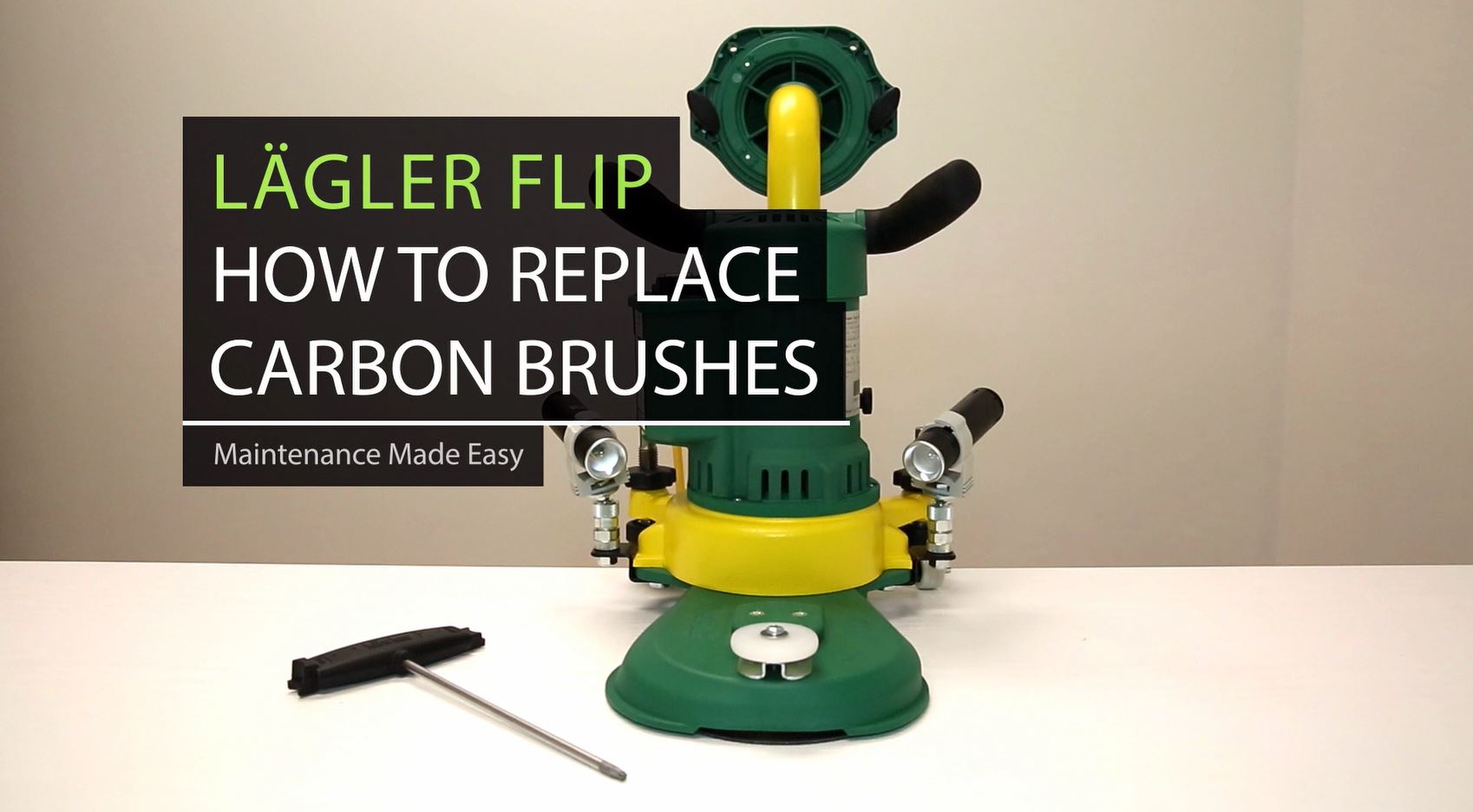

How to Replace Lägler FLIP Carbon Brushes

https://www.laglernorthamerica.com/wp-content/uploads/2020/02/FLIP-Change-V-Belt-scaled.jpg 1440 2560 webmaster https://www.laglernorthamerica.com/wp-content/uploads/2020/02/logo2-300x90.png webmaster2017-11-29 18:19:032020-02-29 18:26:10How to Replace the Lägler FLIP® V-Belt

HUMMEL. The Icon Builders.

January 17, 2017/in Lägler /by webmaster

This ain’t Vegas. What happens at the Lägler factory in Germany does not stay in the Lägler factory in Germany. It gets shipped near and far to floor guys
in 142 countries.

Take the HUMMEL. The icon in floor sanding. The HUMMEL didn’t become the most-recognized “big machine” in the industry overnight. It launched in 1969,
the world’s first belt sander. Many tens of thousands of them are the heart of flooring businesses worldwide today, whether the guy running it gets
paid in dollars, euros, pesos or pounds.

HUMMEL Manufacturing | Built by Hand in Germany

The HUMMEL is the heart of Lägler company, too, which has more than 60 years as a privately owned family business. Founded by Eugen Lägler, the legacy
continues in the hands of his son, Karleugen Lägler.

That explains a lot about the consistent quality of the machines. Steady vision, keeping the HUMMEL on-point with its past while being adaptable for the
future. Got a 40-year-old machine in need of parts? No problem. New parts fit.

Another key to this consistent quality comes from the men on the factory floor. They have a few years to a few decades of experience in the guts of that
one machine. Each man has had a part in sending thousands to tens of thousands of HUMMELs out the door and onto floors.

Start to finish, it’s these Lägler craftsmen that make HUMMEL happen. Fabricating, welding, powder coating, hand assembling, and testing the more than
100 parts assemblies for each machine.

Lägler HUMMEL. Hand Built in Germany. Hand Approved Worldwide

Few parts come from outside the factory and outside the hands of Lägler employees. But those that do are made by partners nearby, following Lägler designs
and using custom tools made in the Lägler tool shop.

This is why the Lägler HUMMEL is recognized by flooring guys worldwide. This is how it earned its rep as an icon of floor sanding. This is why we say,
“Hand Built in Germany. Hand Approved Worldwide.”

Watch the three-minute behind-the-scenes story of these men who make of the HUMMEL.

Learn more. Subscribe to the Lägler North America newsletter and join us on Instagram, Facebook, Twitter and YouTube.

Related Web Pages

Leveling Your HUMMEL Wheels

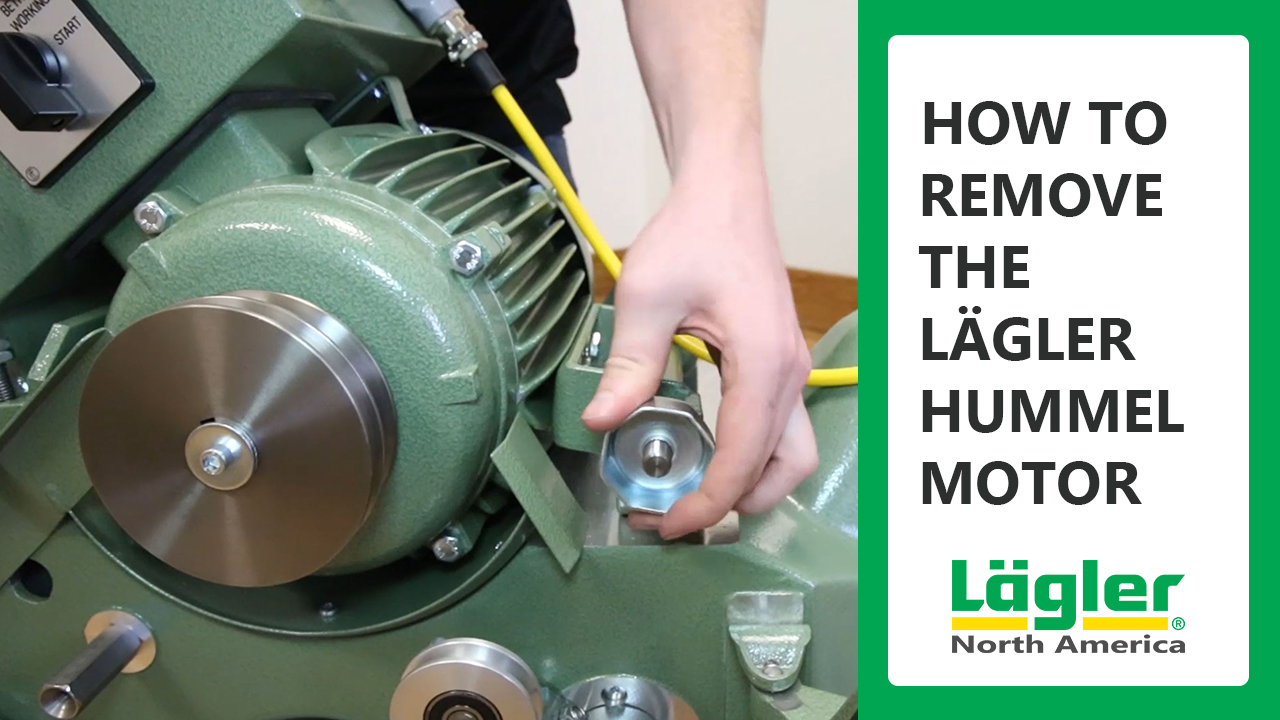

How to Remove + Reattach the HUMMEL Motor

How to Replace Your HUMMEL Drum



https://www.laglernorthamerica.com/wp-content/uploads/2020/02/HUMMELIconBuilders-scaled.jpg 1440 2560 webmaster https://www.laglernorthamerica.com/wp-content/uploads/2020/02/logo2-300x90.png webmaster2017-01-17 01:18:282020-02-29 01:21:53HUMMEL. The Icon Builders.

How (and Why) to Level the Wheels of the Lägler HUMMEL®

January 3, 2017/in Lägler /by webmaster

How to Level the Wheels of the Lägler HUMMEL®

OK, so you’re on your way into the house, carrying your HUMMEL. It gets dropped. It takes a lot to throw out of whack the wheel setting on your Lägler
HUMMEL® but it can happen in a moment like this. Seeing and fixing the misalignment is super-easy once you’re in the house and ready to
fire up.

Top Two Things You Need to Know

1. How to know your Lägler HUMMEL wheels are not level with each other

2. How to realign the wheels of the Lägler HUMMEL for best sanding


How to Know If Your HUMMEL Wheels Are Aligned

If the wheels are not set at the same height, the machine will lean slightly. That will cause uneven wear on the abrasive that will be obviously visible
on the belt. And an off-center mark will be obvious if you tap a footprint on the floor to test the cut. An uneven machine will leave an uneven mark
on the floor.

When the wheels are set properly, the center of the drum is where the cutting happens, so you will see a symmetrical sanding footprint on the floor and
even wear on the sanding belt. [Note: This is why you should not dress a Lägler drum. It is designed for cutting from the high spot of the drum to
improve sand paper tracking. It also prevents the edges of the paper making contact with the floor and leaving lines.]

The short video above shows the difference between an uneven sanding mark and one that is nicely balanced at the center of the drum.

/_photos/WheelLeveling-drawing.JPGHow to Level the Wheels of the Lägler HUMMEL

How to Adjust HUMMEL Wheels for Best Sanding

Like basic maintenance with all Lägler machines, there is a simple Lägler tool for the job. And, if you bought your HUMMEL new, the tool for leveling the
wheels came with the machine. Don’t have the tool? Check with your area Lägler dealer or on our website using these part numbers: P233 (Lägler N.A.) and 100.00.50.100 (manufacturer). You also will need a 13mm wrench for loosening the tension screw of the adjustable wheel (one comes
with buying a new HUMMEL).

The wheel on the belt-guard side is fixed in position with a screw. The wheel on the other side is adjustable, and the tension screw for that is marked
on the machine with a black arrow. Your goal is to move the adjustable wheel up or down as needed to set it at the same height as the position of the
fixed wheel.

The video above is a quick how-to demonstration for setting your HUMMEL wheels at the same height.

2 Tips for Leveling the Wheels of Your HUMMEL

If you are cutting more heavily to the left, the adjustable wheel will need to be lowered toward the floor, taking it a little further down out of the
“wheel well.” (See A and B in drawing below.)

If you are cutting more heavily to the right, or belt-guard, side, the adjustable wheel will need to be raised, sliding it a bit further up into the wheel
well of the machine housing. (See C and D in drawing below.)

How to Adjust Lägler HUMMEL Wheels

Learn about best uses and maintenance of the Lägler HUMMEL, TRIO and FLIP on the Lägler North America blog, and by participating
in Lägler’s Premium Sanding Technology (PST®) one-day certification training course.

Floor sanding professionals in North America can call us at 1-800-8-HUMMEL (1-800-848-6635) for answers to technical and sales questions, and to schedule
PST certification training.

Related Blog Posts

#HUMMELtip: Why You Should Sand at Angles + Left to Right

How to Remove the HUMMEL Motor (for Lighter Carrying)

How to Replace the HUMMEL Sanding Drum

https://www.laglernorthamerica.com/wp-content/uploads/2020/02/LEVELING20YOUR20HUMMEL20WHEELS.jpg 900 1600 webmaster https://www.laglernorthamerica.com/wp-content/uploads/2020/02/logo2-300x90.png webmaster2017-01-03 01:22:082020-02-29 01:25:37How (and Why) to Level the Wheels of the Lägler HUMMEL®

The Most Popular, Most Helpful Lägler N.A. Content of 2016

December 27, 2016/in Lägler /by webmaster

We’re doing what people do at the end of one year, beginning of another. We look back at what we did well and what we can improve. We always want to keep
doing better.

That runs from machine designs and production at the factory in Germany to customer service, certification training and every way we connect with you pros
online here in North America.

We kicked off a new, mobile-friendly website in 2016. With it came a blog, and we started social media pages on Instagram, Facebook,
Twitter and YouTube. We started making videos and answering top questions you have about using and
maintaining Lägler machines.

Added up, you all spent about five work weeks of the year learning from the content on our blog. That’s a great start, and we aim to build on that in the
coming year.

Here’s a recap, highlighting the most popular how-to topics and just plain fun social media posts.

What is Lägler Premium Sanding Technology (PST) Certification Training?

TOP BLOG CONTENT

Lägler Certification: What is Lägler PST?

Our most viewed blog page. Like we say in that post, our training program is about two things:

1. Building relationships with contractors, letting them know we are the true resource about Lägler machines and we’re ready to help.

2. Helping contractors to maximize success with their sanding and finishing businesses.

In this post, we describe the Lägler process that gets you the most out of every floor while taking the least time on the job. Greatest efficiency for
the flattest floors. We tell what the one-day certification course costs and why we offer it at a financial loss to ourselves.

Nothing builds trust like truth and, of course, quality machines you can count on for many years. That’s what we bank on every day.

Read the full post, “Lägler Certification: What is Lägler PST?”

TOP HUMMEL® BLOG POSTS

Not surprisingly, HUMMEL blog posts are a favorite among all our topics. It’s the most popular Lägler machine in North America, and is used by many thousands
across the world.

How to Replace a Lägler HUMMEL Sanding Drum

This post tells the two most important things to know about the HUMMEL drum. It also includes step-by-step instructions.

The video in this post shows proof that the HUMMEL design maintains its nearly 50 years of original engineering while also taking on all the parts that
have been refined along those many years. New parts on, say, a 1983 machine? No problem. Maintain and roll on.

Read the full post, “How to Replace a Lägler HUMMEL Sanding Drum.”

Why You Should Sand Wood Floors at an Angle and Left to Right | Lägler North America Blog

Why You Should Sand Wood Floors at an Angle + Left to Right

We’ve refined our thinking on sanding at an angle. For example, we used to recommend cutting at an angle for the first pass, and then with the direction
of a straight-laid floor for finer grits.

Now, we recommend using at least a slight angle for each pass. It’s all about getting the flattest results.

We also explain why to sand left to right as you move across the field of a room, and why you should not sand right to left, if you want to achieve the
best results.

Read the full post, “Why You Should Sand Wood Floors at an Angle + Left to Right.”

4 Reasons Not to Use a Wire-Brush Drum with a Lägler HUMMEL

We know the wire-brushed look is especially cool with current trends in wood flooring. But we also know the reasons you don’t want to throw a wire-brush
drum on your HUMMEL for that job.

What did we say about truth above? Truth builds trust, and trust us when we say we are focused on quality floors and offering the best information we have
to you.

Read the full post, “4 Reasons Not to Use a Wire-Brush Drum with a Lägler HUMMEL.”

Do you have Lägler HUMMEL questions and helpful content ideas? Use the Contact link in the menu heading above to submit your suggestions.
We want to tackle all the information that will be helpful to you in the field with future blog and video posts.

TOP FLIP® BLOG POSTS

The FLIP edger finally is getting its due in North America. The machine was launched in 2001 in Germany, and now is becoming much more widely known and
used here. Search #LaglerFLIP on
Instagram to see photos and videos from some of the guys who are using it — and bragging about it — across the land.

How to Use the Lägler FLIP Corner Attachment | Lägler North America Blog

How to Use the Lägler FLIP Corner Attachment

How do you handle room corners, around pipes, and between railing balusters? You could scrape. You could use an orbital sander in some of those spots.
But the FLIP corner attachment is the high-speed tool that knocks it all out the cleanest and quickest.

The FLIP is sold with the short and corner attachments, and this blog post includes tips for using both.

Read the full post, “How to Use the FLIP Corner Attachment.”

How to Adjust Lägler FLIP Sanding Pressure

Like everything with Lägler machines, the engineers have lightened the pro’s load on the job. With the FLIP, don’t burn out your shoulders to add a touch
of pressure here or there. Just use as recommended.

This blog post gives step-by-step instructions for making sure the FLIP is cutting as expected. It tells how to set the pressure based on which attachment
you’re using, and in only of seconds of effort on the job.

The CAD drawings in this post also show what goes wrong when you’re edger is running on off-kilter settings like an old sea captain with an uneven peg
leg.

Read the full post, “How to Adjust FLIP Sanding Pressure.”

What Lägler FLIP questions and helpful content ideas do you have? Tell us, using the Contact link in the menu heading above. We want to
turn those questions into useful blog and video posts to help everyone #LearnMoreEarnMore.

TOP TRIO BLOG POSTS

What is a surefire way to know when a floor sanding guy doesn’t own a TRIO and hasn’t participated in Lägler’s Premium Sanding Technology (PST®)
certification training? He calls the machine a buffer and thinks it slows down the process.

For those who know better, we’re building our how-to TRIO content. For those who want to test-drive a TRIO and see why so many others swear by it, read,
“What is Lägler PST?”
and get in touch with us.

How the Lägler TRIO Sanding Disc Arrows Help You to Extend the Life of Your Abrasives | Lägler North America Blog

Lägler TRIO: Sanding Disc Arrows + Abrasives

Let’s veer off the path for a minute. Have you ever noticed on the gas gauge in your truck that arrow next to the little silhouette of the gas pump that
either points left or right? It’s a reminder, showing you on which side of the vehicle your gas tank is when you pull up to the pump at the gas station.

Well, the TRIO has a similar reminder on its three sanding discs. This blog post tells why the arrows cast in the plate are there and how that plays a
part in extending the life of your abrasives.

The post also talks hard plates and donuts. Getting hungry? Read the full post, “Lägler TRIO: Sanding Disc Arrows + Abrasives.”

How to Clean the Lägler TRIO Filter

What are the three things you need to know about cleaning the TRIO filter? What is the one thing you really shouldn’t ever do and, we’re willing to bet,
you or someone on your crew has done?

This post includes a super-short video and the three simple steps you should use to clean your filter in only seconds.

Read the full post, “How to Clean the Lägler TRIO Filter.”

How to Dismantle and Reassemble the Lägler TRIO Filter Unite | Lägler North America Blog

How to Dismantle + Reassemble the TRIO Filter Unit

Right off the top, this post tells three signals it’s time to get into your filter unit for some basic maintenance.

Don’t push the TRIO to the side, because you aren’t sure what’s wrong. And don’t use time and money to have someone else handle it. You’ve got this.

Step-by-step instructions in this post lay out exactly what you need to know. It’s also good to keep your manual handy. Read when in need.

Read the full blog post, “How to Dismantle + Reassemble the Lägler TRIO Filter Unit.”

What Lägler TRIO questions and blog/video ideas do you have? The Contact link in the menu heading above is your path to telling us. We
can turn your question – which likely is a common question many others have – into helpful blog content for everyone.

TOP VIDEO CONTENT

We started a YouTube channel this past year. It’s great for embedding videos in our blog posts. If you watch as much on YouTube as you do on TV, like your kids do, look us up and
subscribe.

But we also post our videos on Instagram and Facebook, where these videos (mostly how-to) add up many times more views. (If you aren’t promoting your business
on social media and want to learn, give these blog posts a look: “Social Media for Wood Flooring Pros”
and “Interview with a Contractor: Social Media Success.”)

So view our videos using whatever app you favor. Below is one of our most popular, “How to Replace a HUMMEL Sanding Drum.”

Follow Lägler North America Content

Follow our blog and more content through our monthly email newsletter and our Facebook, Instagram, Twitter and YouTube social media
pages.

Share your content suggestions using our contact page.

And make 2017 your biggest yet. We’ll be here.

https://www.laglernorthamerica.com/wp-content/uploads/2020/02/Content-Year-in-Review-scaled.jpg 1440 2560 webmaster https://www.laglernorthamerica.com/wp-content/uploads/2020/02/logo2-300x90.png webmaster2016-12-27 01:25:502020-02-29 01:35:30The Most Popular, Most Helpful Lägler N.A. Content of 2016

Lägler TRIO: How to Change the Tooth Belt

November 2, 2016/in Lägler /by webmaster

Good condition of the tooth belt, or the belt that turns the three sanding plates (discs) of the Lägler TRIO fine sanding machine, is critical. No belt,
no sanding. It’s that simple.

In this post, and the video below, we give step-by-step instructions for removing the current belt and replacing it with a new belt.

How to Know When the Tooth Belt Needs to Be Changed

It can be difficult to know when to change the belt, unless it’s the most obvious situation: a three- or four-year-old belt that has dried and become brittle,
and then breaks. In that case, the sanding discs will not turn.

Otherwise, a common way to recognize when the tooth belt needs to be changed is to notice decreased RPMs and less dust filling the dust bag.


How to Remove the Tooth Belt

Starting with the machine turned off and unplugged from power:

1. Lock the handle into its forward position, using the clamping lever at the front of the handle.

2. Lean the TRIO backward to rest safely on the two protective cushions at the back-bottom of the machine’s frame, and on the guide tube.

3. Remove the sanding plates by grabbing the edges and pulling the plates away from the machine, disengaging the TRIO’s three prongs from their rubber
jigs. Caution: Do not use a screwdriver or other tool to pry the plates away from the machine; prying with tools can cause damage.

4. Remove the eight screws of the cover and remove the cover. Recommended: Check the sealing felt on the inside of the cover and replace as needed.

5. Loosen the counter nut of the belt tensioner, using a 17mm wrench, by turning the nut all the way back against the casing wall.

6. Expand the spring by turning the second nut back to the counter nut.

7. Push the belt tensioner back and remove the belt.

8. Use a vacuum to remove dust and dirt inside and around the pulley mechanism.

How to Change the Lagler TRIO Tooth Belt

How to Insert a New Tooth Belt

1. Push the belt tensioner all the way back to the casing wall.

2. Insert the new belt with the geared side facing and engaging the pinion gearing, with the flat side of the belt skirting the gear bearings.
Caution: Incorrectly inserting the belt can cause damage to the machine.

3. Tighten the spring using the nuts to adjust the spring to the proper length:

a. Orange spring: 55 millimeters (approx. 2 1/8”)

b. Blue spring: 52 millimeters (approx. 2”)

4. Replace the cover, fastening it with the eight screws previously removed

5. Mount each sanding plate by first inserting one of its three prongs (locking bolts) into one of the rubber jigs, then fitting the other two into their
respective positions. Press the plate into position as far as it will go.

6. The belt replacement is complete. Stand up the TRIO, readjust the handle to your preference for use. You’re ready to sand again.

Related Blog Posts

How to Clean the Lägler TRIO Filter

How to Dismantle + Reassemble the Lägler TRIO Filter Unit

Arrows + Abrasives: How to Extend the Life of Abrasives Using the TRIO

Related Parts

P949 (Tooth) Belt

P953 Sanding Disc, Complete

https://www.laglernorthamerica.com/wp-content/uploads/2020/02/TRIO-belt-title-scaled.jpg 1440 2560 webmaster https://www.laglernorthamerica.com/wp-content/uploads/2020/02/logo2-300x90.png webmaster2016-11-02 18:38:222020-02-29 18:42:16Lägler TRIO: How to Change the Tooth Belt

How To Remove the Lägler HUMMEL Motor

September 7, 2016/in Lägler /by webmaster

The Lägler HUMMEL weighs about 175 pounds. That weight is important for sanding wood floors with the HUMMEL, but it’s no doubt tough on your back when
carrying the machine for long.

Any of you who have worked a multi-story job alone and have lifted it up a flight or two of stairs without taking off the motor know what I’m talking about.

Here are simple instructions, as shown in the short how-to video below and on our Lägler North America YouTube channel, to separate the HUMMEL motor from its chassis to make much lighter
work of carrying the machine.

Tools Needed to Remove the HUMMEL Motor

The tools you might need are:

  • Box wrench (LNA #P232 | Mfr. #100.00.45.105) or channel lock pliers
  • 6 mm hex wrench
  • 17 mm crescent wrench

Easy Step-by-Step Instructions for Removing the HUMMEL Motor

Step 1: Make sure the sanding drum of the HUMMEL is raised off the floor and that the machine is turned off and unplugged.

Step 2: Open the belt guard by loosening its screw, using a 6 mm hex wrench, if needed, and swinging the guard out of the way.

Step 3: Release the tension in the drive V-belts by loosening the eye bolt. Use a 17 mm wrench, if needed, to initially loosen the bolt.

Step 4: Remove the drive belts from both pulleys.

Step 5: Disconnect the kill-switch cord.

Step 6: Loosen the two motor nuts enough to allow you to pull the motor off the HUMMEL chassis. Do not completely remove the motor nuts.

To re-attach the motor to the HUMMEL, perform the steps listed above in reverse order.

When replacing and re-tensioning the drive belts, the trick is to tighten the eye bolt until there is one-quarter inch of flex in the belts. Don’t just
screw the eye bolt down to the exact same spot it was in prior to removing the motor.

Related Blog Posts

How to Replace the HUMMEL Sanding Drum

Why to Sand at Angles + Right to Left with the HUMMEL

Stay current with Lägler North America. Sign up for our monthly email newsletter.



https://www.laglernorthamerica.com/wp-content/uploads/2020/02/titleslide.JPG 720 1280 webmaster https://www.laglernorthamerica.com/wp-content/uploads/2020/02/logo2-300x90.png webmaster2016-09-07 18:51:492020-02-29 18:53:34How To Remove the Lägler HUMMEL Motor

How to Clean the Lägler TRIO Filter

July 13, 2016/in Lägler /by webmaster

Have you seen our tag #MaintenanceMatters? We use it on Instagram, Facebook and Twitter. Because it’s true, maintenance matters to your machines and your business’ success. Plus, we like to talk about the matters of maintenance.

So here’s another one that should be happening every day when you use your Lägler TRIO fine wood floor sanding machine.

Three things to know about cleaning the TRIO fine sanding machine filter unit:

  1. The filter should be cleaned after each dust bag change; it only takes a few moments.
  2. Do not blow compressed air into the dust bag container or the neck of the suction hose; it can damage the pressure control sensor.
  3. Failing to clean the filter unit will decrease dust suction, make the TRIO perform less efficiently, and dust emission into the environment will increase.

Three Steps to Basic Cleaning of the TRIO Filter

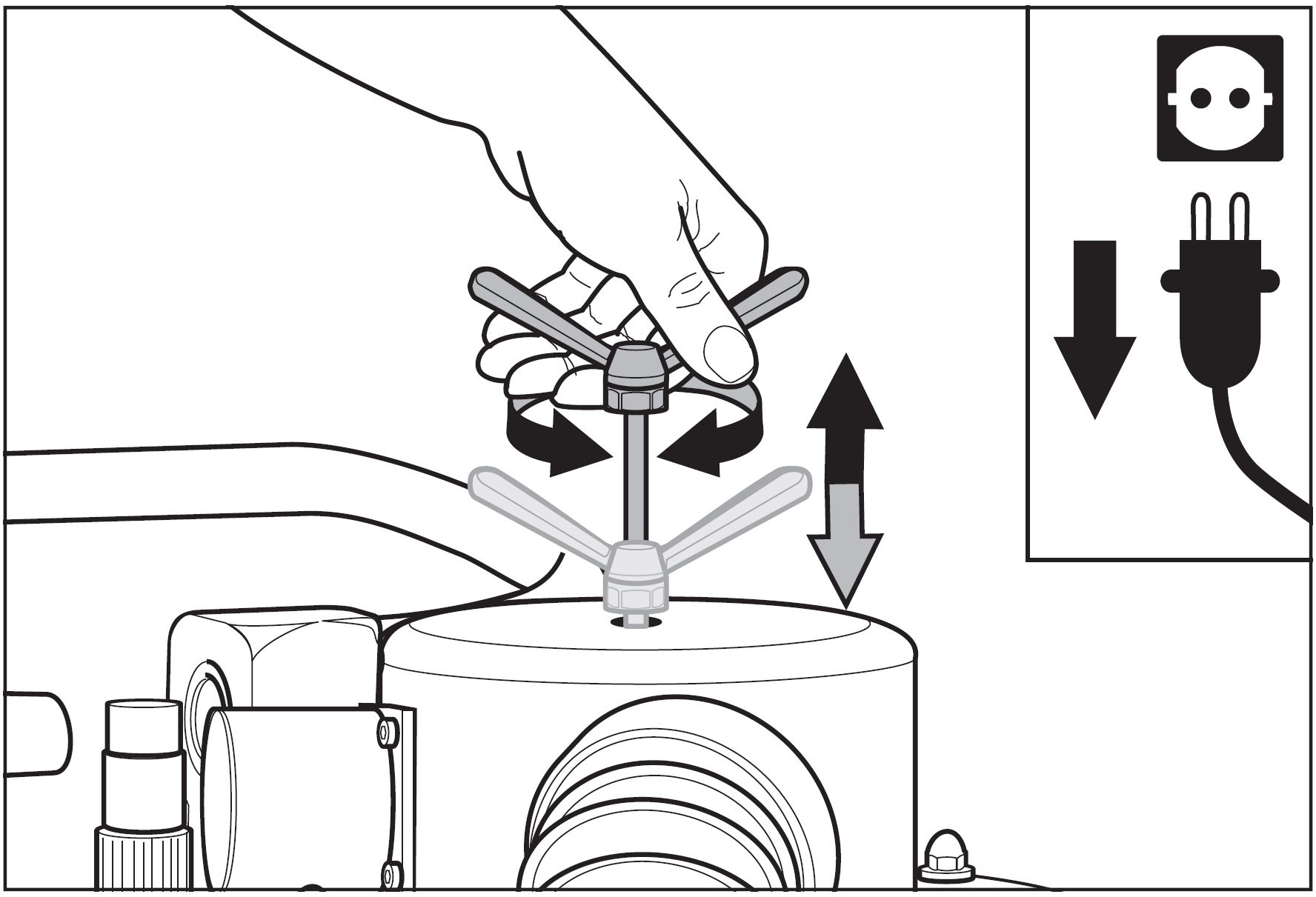

There are only three steps to knock the dust out of the filter and into the dust bag, assuming you already have turned off and unplugged the machine. These steps only take five seconds:

  • Grab the wing screw on top of the filter unit on top of the TRIO, then gently pull it upward. That moves the cleaning rod and brushes located inside
    the filter unit. Watch the video above to see how the TRIO’s internal filter cleaning system works.
  • Slowly turn the wing screw side to side, back and forth; then move it up and down a few times, knocking dust into the dust bag.
  • When finished with step two, push the wing screw/slide all the way down, or the machine’s suction will be decreased.

If these simple steps do not sufficiently clean the filter or if it seems like you are needing to repeat this cleaning process too often, the filter likely
is clogged.

In that case, you need to dismantle the filter unit for more thorough cleaning. Read “How to Dismantle and Reassemble the Lägler TRIO Filter Unit.”


Related Lägler TRIO Parts

Separator (Dust Containment + Filter Unit): P1010 (Lägler N.A.), 900.00.16.100

Wing Nut/Screw: P028, 000.20.45.083

Filter Brush: P1015, 900.16.45.105

Filter: P952, 900.16.18.105


Subscribe to Lägler North America’s monthly newsletter to learn more.

https://www.laglernorthamerica.com/wp-content/uploads/2020/02/TRIOfilter-cleaning.JPG 1211 1776 webmaster https://www.laglernorthamerica.com/wp-content/uploads/2020/02/logo2-300x90.png webmaster2016-07-13 19:03:112020-02-29 19:04:55How to Clean the Lägler TRIO Filter

How to Replace a Lägler HUMMEL Sanding Drum

June 29, 2016/in Lägler /by webmaster

Two important things you need to know about the Lägler HUMMEL sanding drum:

  • Do not dress the drum
  • Drum replacement is easy

The HUMMEL sanding drum has a slight “football” shape to it. Dressing it ruins that design, affecting wood floor sanding results. Dressing a HUMMEL sanding drum causes poor sand paper tracking and chatter, among other problems.

Replacing the drum takes only one to two minutes, whether at your shop or on the jobsite. Instructions for “Replacement of the Sanding Drum” are in the
operating instructions manual that comes with the purchase of each new HUMMEL.

Here are the highlights for how to replace the Lägler HUMMEL sanding drum, as shown using a 1983 HUMMEL and new parts in the short video above. We’re assuming
you’ve already unplugged the machine, have removed the side cover, and have tilted the machine back to rest on its handles and the safety guards at
the bottom.

  1. Remove the sanding belt from the tensioning roller and the sanding drum.
  2. Loosen and remove the drum nut, using the box wrench that comes with purchase of a new HUMMEL, by turning it clockwise (that means
    righty-loosey, not lefty-loosey). You will need to loosen the nut with a mallet tap on the wrench handle.
  3. Turn the sanding drum so that the key way is at the top of the drum, pointing toward the ceiling.
  4. If the drum does not move easily from its shaft, use the handle of your mallet or an appropriately sized piece of wood to gently pry it loose, starting
    to move it off the shaft. Do not hit it with a hammer; that will damage the drum.
  5. Clean the shaft. Mild lubrication is helpful.
  6. Slide the new drum onto the shaft, making sure to align the key way as needed.
  7. When putting the drum nut back onto the shaft make sure to put the side that has a few “missing” threads toward the drum. Otherwise, the drum will
    not be secured in position; it will move on the shaft during use, which can cause chatter on the floor.
  8. Put the side cover back on, stand the machine up, and get back to work.

We recommend you replace a HUMMEL sanding drum once per year to maintain quality sanding results. If you need to order a replacement drum
or other HUMMEL parts, talk with your local distributor, shop online at www.laglernorthamerica.com or call Lägler North America at 800-8-HUMMEL.

Related Lägler HUMMEL Parts

Sanding Drum: P161 (Lägler North America); 120.40.00.100 (Manufacturer/Global)

Drum Nut (Hex Nut LH): P159; 100.02.06.100

Box Wrench: P232; 100.00.45.105

Side Cover: P048; 100.01.03.100

Related Blog Posts

Why You Should Sand at Angles + Left to Right

How to Remove the HUMMEL Motor for Lighter Carrying

What is Lägler Certification?

https://www.laglernorthamerica.com/wp-content/uploads/2020/02/CoverImage.JPG 720 1280 webmaster https://www.laglernorthamerica.com/wp-content/uploads/2020/02/logo2-300x90.png webmaster2016-06-29 00:25:482020-02-26 00:29:18How to Replace a Lägler HUMMEL Sanding Drum

FLIP: How To Replace Carbon Brushes

May 25, 2016/in Lägler /by webmaster

Do you know how many carbon brushes there are on the Lägler FLIP edger sanding machine?

If you aren’t sure, it’s probably worth a quick check to make sure they are in good working shape. Our one-minute video shows the one tool you need for the job, where the brushes are, what they look like when they are excessively worn, and when they are new.

Our video shows three easy steps for carbon brush replacement.

SIGNS OF EXCESSIVE WEAR

Carbon brushes should be replaced once per year to avoid damage to the FLIP motor. The brushes include safety contacts that automatically shut off the motor when the wear limit is reached.

If the power switch on your FLIP no longer stays turned on and you are needing to hold the switch in the on position, it’s a strong sign it is time to replace the brushes. Continuing to use the FLIP in this condition will lead to switch and motor damage.

Another key sign, if the auto shut off is ignored, occurs when the motor starts to burn. You also might see sparks. As you can guess, your repair costs increase significantly when this happens.

HOW TO REPLACE THE CARBON BRUSHES IN A LÄGLER FLIP

Step-by-step instructions are in the manual that accompanies each FLIP when bought new. Here are the key steps, which are shown in our how-to video:

  1. Unfasten the four screws on top of the FLIP and remove the top cover (handles) from the motor housing.
  2. For each carbon brush, detach the connectors, then gently push the brass, coiling pressure clamp to the side. Remove each worn carbon brush.
  3. For each carbon brush, insert the new brush, holding the pressure clamp out of the way until the brush is in place. Attach the connector.
  4. Re-install the handles/cover atop the motor housing.

MINIMIZE COSTS OF MAINTENANCE Back to the question I asked at the beginning of this post: How many carbon brushes are part of your Lägler FLIP? The answer is two. Don’t forget to check and replace both brushes. Preventive maintenance always is less costly for the bottom line of your business. Some simple math below highlights how much of a difference it will make if you replace your carbon brushes at the right time versus if you wait too long.

A new carbon brush will cost you a little more than $20. So you can plan to spend a relatively modest $45 for two, plus shipping, as applicable. (I also recommend keeping a spare pair of carbon brushes in your truck.)

Compare that to needing to buy a new switch and motor, on top needing a pair of brushes. Those will add about $800 to your bill.

Needless to say, that’s a huge difference. So watch our one-minute how-to video about replacing the carbon brushes in your FLIP. It will be well worth your time.

Where to Buy New Carbon Brushes

As with all Lägler parts, talk with your local distributor. If you are in the U.S. or Canada and you do not have a local distributor, Lägler parts are available online at laglernorthamerica.com.

The part number you need is P1228, if buying online from Lägler North America. Otherwise, use the manufacturer number that is globally recognized: 000.65.84.012.

Stay on top of Lägler N.A. news, how-to videos, Lägler certification opportunities and everything else Lägler N.A. Signup for our email newsletter.



https://www.laglernorthamerica.com/wp-content/uploads/2020/02/FLIP-ReplaceCarbonBrushes2.JPG 936 1698 webmaster https://www.laglernorthamerica.com/wp-content/uploads/2020/02/logo2-300x90.png webmaster2016-05-25 05:23:002020-02-24 07:05:10FLIP: How To Replace Carbon Brushes

Recent Posts

  • November 16 – 20: Lägler and Loba-Wakol Essential Systems Course, DenverAugust 21, 2020
  • Versatility and Team GreenAugust 18, 2020
  • Precision and Team GreenAugust 18, 2020
  • Durability and Team GreenAugust 18, 2020
  • Tradition and Team GreenAugust 18, 2020
  • The Versatility of LÄGLERAugust 12, 2020
  • The Precision of LÄGLERAugust 12, 2020
  • The Durability of LÄGLERAugust 12, 2020
  • The Tradition of LÄGLERAugust 11, 2020
  • October 19 – 23: Lägler and Loba-Wakol Essential Systems Course North CarolinaAugust 11, 2020

Tags

Abrasives Contractor Education Featured Item Fly-and-Sand How-To How-To Video How to sand a wood floor Lagler Sanding Manual Lägler Certification Training Lägler FLIP Lägler History Lägler HUMMEL Lägler Parts Lägler TRIO Machine Maintenance Marketing Premium Sanding Premium Sanding Technology PST Sanding Drums Social Media Subfloor Prep

Archive

  • August 2020
  • July 2020
  • July 2019
  • December 2017
  • November 2017
  • October 2017
  • September 2017
  • August 2017
  • July 2017
  • June 2017
  • May 2017
  • April 2017
  • March 2017
  • February 2017
  • January 2017
  • December 2016
  • November 2016
  • October 2016
  • September 2016
  • August 2016
  • July 2016
  • June 2016
  • May 2016

Maximize jobsite efficiency. Boost your bottom line.

Earn Lägler Certification

Signup to look, listen + learn through the

Lägler N.A. Newsletter

About Lägler North America

Lägler North America, a division of Palo Duro Hardwoods, is the North American distributor of machines and parts manufactured by Eugen Lägler GmbH in Germany. We are North America’s machine repair center, and offer Lägler’s one-day Premium Sanding Technology (PST®) certification course.

Latest News

Lägler N.A. Is Social May 11, 2016

Lägler North America is building a community via its social pages. Connect with us on Instagram, Facebook, and Twitter to see photos and videos, to learn trade tips, hear about opportunities and more.

Stay Informed

Click to download the latest Lägler Direkt Newsletter

Download

Copyright © 2020 Lägler North America. All Rights Reserved.

  • Terms & Conditions
  • Shipping & Return Policies
  • Privacy Policy

Scroll to top
